Disclaimer: ProCESS/CLONES internally implements the probability distributions using the C++11 random number distribution classes. The standard does not specify their algorithms, and the class implementations are left free for the compiler. Thus, the simulation output depends on the compiler used to compile CLONES, and because of that, the results reported in this article may differ from those obtained by the reader.
Once one has familiarised oneself with how a tumour evolution simulation can be programmed using ProCESS (see the article on tissue simulation), the next step is to augment the simulation with sampling of tumour cells. This mimics a realistic experimental design in which we collect tumour sequencing data.
This article introduces sampling using different types of models; starting from simpler to more complex simulation scenarios. We consider:
multi-region sampling: where at every time point multiple spatially-separated samples are collected;
longitudinal sampling: where the sampling is repeated at multiple time-points.
Custom multi-region sampling
We consider a simple monoclonal model, without an epi-state.
library(ProCESS)
# set the seed of the random number generator
set.seed(0)
# Monoclonal model, no epigenetic state
sim <- TissueSimulation("Monoclonal")
sim$add_mutant(name = "A", growth_rates = 0.1, death_rates = 0.01)
sim$place_cell("A", 500, 500)
sim$run_up_to_size("A", 60000)
#> [█████████████████████████---------------] 60% [00m:00s] Cells: 36130 [███████████████████████████████████████-] 95% [00m:00s] Cells: 57471 [████████████████████████████████████████] 100% [00m:01s] Saving snapshot

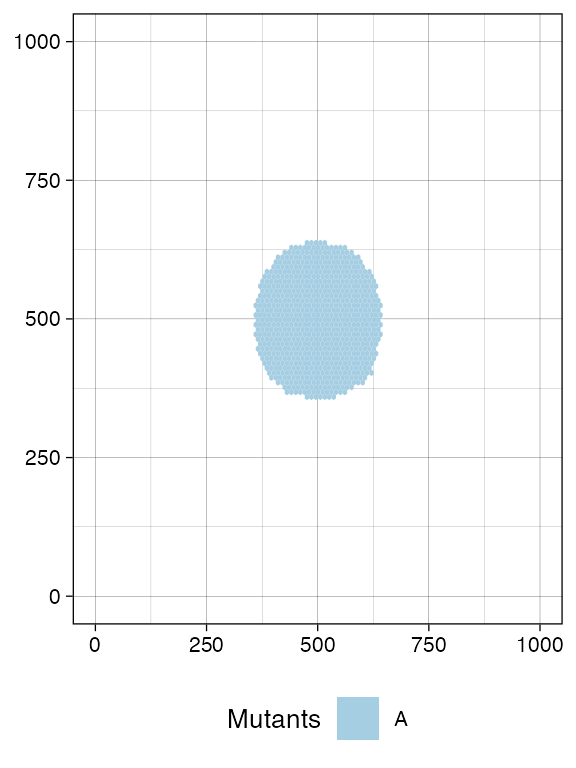

current <- plot_tissue(sim)
current
A sample is defined by a name and a bounding box, which has (x,y) coordinates for the bottom-left and top-right points.
For this simulation, we define two samples with names
S_1_1 and S_1_2.
# We collect a squared box of (bbox_width x bbox_width) cells
bbox_width <- 50
# Box A1
bbox1_p <- c(400, 400)
bbox1_q <- bbox1_p + bbox_width
# Box B1
bbox2_p <- c(500, 500)
bbox2_q <- bbox2_p + bbox_width
library(ggplot2)

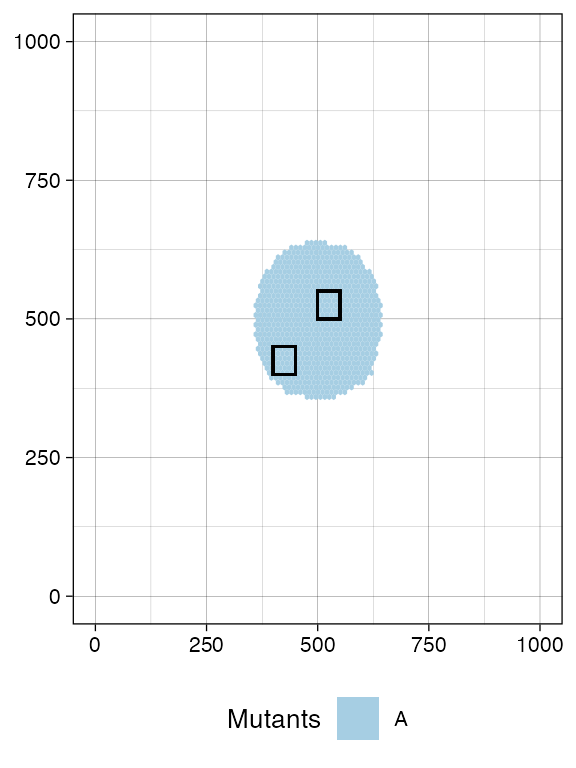

# View the boxes
current +
geom_rect(xmin = bbox1_p[1], xmax = bbox1_q[2],
ymin = bbox1_p[1], ymax = bbox1_q[2],
fill = NA, color = "black") +
geom_rect(xmin = bbox2_p[1], xmax = bbox2_q[2],
ymin = bbox2_p[1], ymax = bbox2_q[2],
fill = NA, color = "black")
# Sampling
sim$sample_cells("S_1_1", bottom_left = bbox1_p, top_right = bbox1_q)
sim$sample_cells("S_1_2", bottom_left = bbox2_p, top_right = bbox2_q)Note: Sampling removes cells from the tissue, as if the tissue were surgically resected. Therefore, cells that are mapped to the bounding box after application of
TissueSimulation$sample_cells()are no longer part of the simulation.

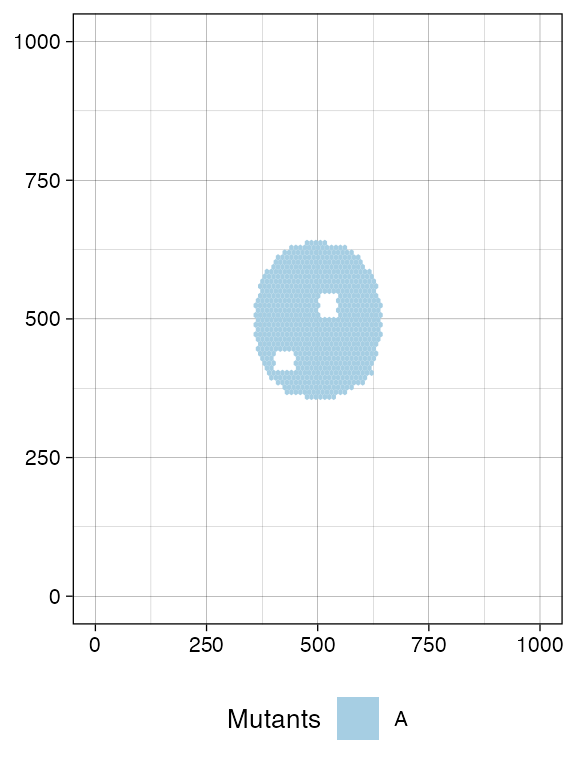

A new call to plot_tissue() will show the box where the
cells have been removed to be white.
plot_tissue(sim)
This is also reflected by TissueSimulation$get_cells(),
which now will not find any tumour cells in the sampled region.
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#> filter, lag
#> The following objects are masked from 'package:base':
#>
#> intersect, setdiff, setequal, union
# This should be empty
sim$get_cells(c(400, 400), c(400 + bbox_width, 400 + bbox_width)) %>% head
#> [1] cell_id mutant epistate position_x position_y
#> <0 rows> (or 0-length row.names)The sampling process exclusively collects tumour cells, while excluding wild-type cells.
The sample forest
Every sampled cell is linked, at the evolutionary level, to the other
cells that originate from the same initial cell. It helps to visualise
the evolutionary information on the cells that we have sampled as a
forest of trees (if one seeded multiple initial cells). The forest is an
object of the R6 class SampleForest.
forest <- sim$get_sample_forest()
forest
#> SampleForest
#> # of trees: 1
#> # of nodes: 20886
#> # of leaves: 5122
#> samples: {"S_1_1", "S_1_2"}The forest has methods to obtain the nodes of the sampled cells.
forest$get_nodes() %>% head
#> cell_id ancestor depth mutant epistate sample birth_time
#> 1 0 NA 0 A <NA> 0.000000
#> 2 1 0 1 A <NA> 5.741436
#> 3 2 0 1 A <NA> 5.741436
#> 4 3 2 2 A <NA> 8.545185
#> 5 4 2 2 A <NA> 8.545185
#> 6 5 1 2 A <NA> 11.583620The leaves of the forest are sampled cells, while the internal nodes
are their ancestors. The field sample is not available for
internal nodes, and reports the sample name otherwise.
# The leaves in the forest represent sampled cells
forest$get_nodes() %>%
filter(!is.na(.data$sample)) %>%
head
#> cell_id ancestor depth mutant epistate sample birth_time
#> 1 40462 24937 31 A S_1_2 297.8990
#> 2 47930 26730 53 A S_1_2 315.8640
#> 3 49760 48031 79 A S_1_2 319.7190
#> 4 51293 17147 34 A S_1_2 323.0180
#> 5 51821 17460 53 A S_1_2 324.1881
#> 6 53934 45810 70 A S_1_2 328.6181The roots of the forest have no ancestors.
# If it is one cell, then the forest is a tree
forest$get_nodes() %>%
filter(is.na(.data$ancestor))
#> cell_id ancestor depth mutant epistate sample birth_time
#> 1 0 NA 0 A <NA> 0We can also query the forest about the samples used to build it.
forest$get_samples_info()
#> name id xmin ymin xmax ymax tumour_cells tumour_cells_in_bbox time
#> 1 S_1_1 0 400 400 450 450 2563 2563 625.721
#> 2 S_1_2 1 500 500 550 550 2559 2559 625.721We can visualise the forest. This plot reports the cells and, on the y-axis, their time of birth.

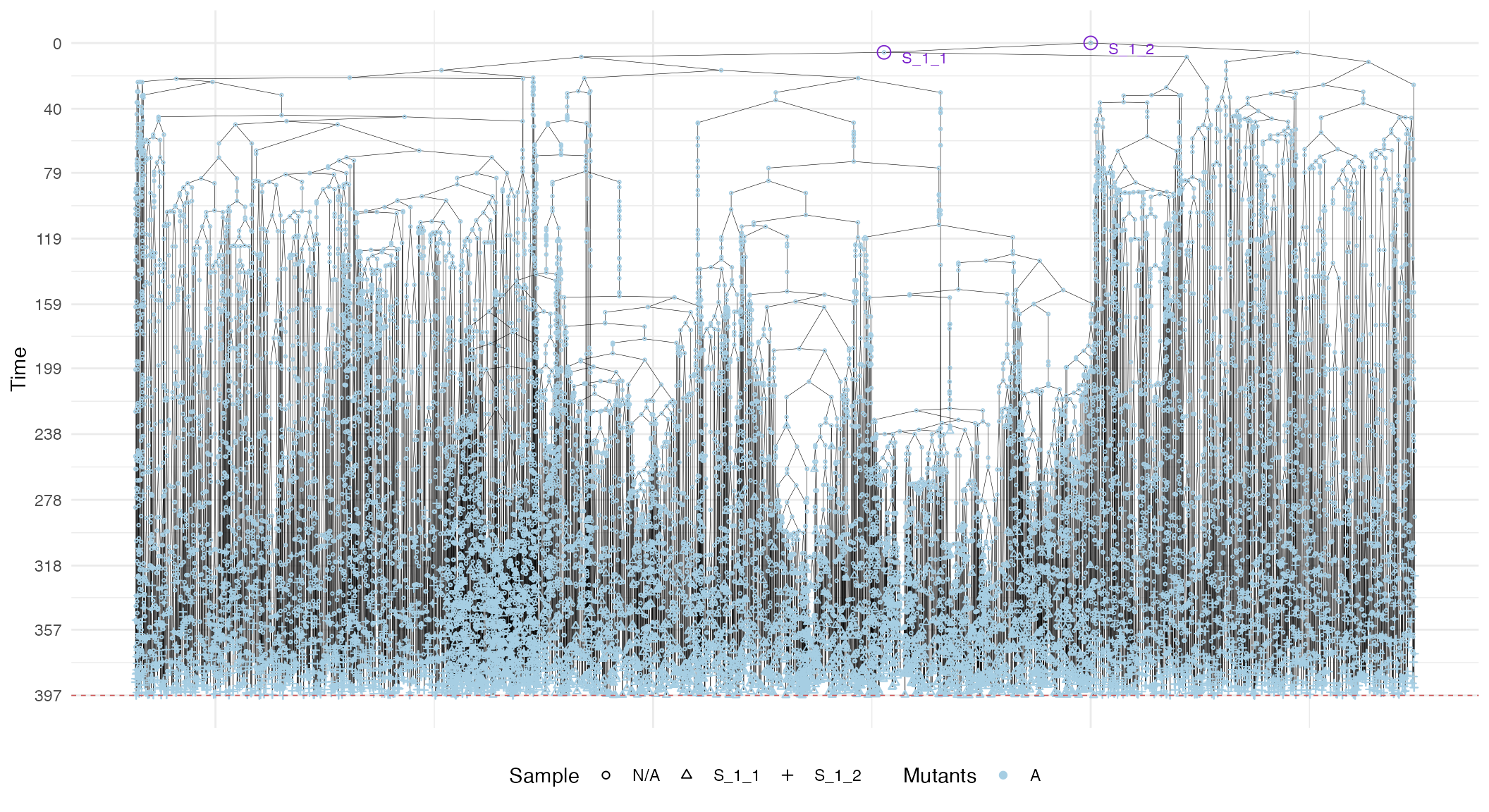

plot_forest(forest)
The plot also shows sample annotations and species, but for a large number of cells, it can be difficult to view the full forest, unless a very large canvas is used. For this reason, it is possible to subset the forest.

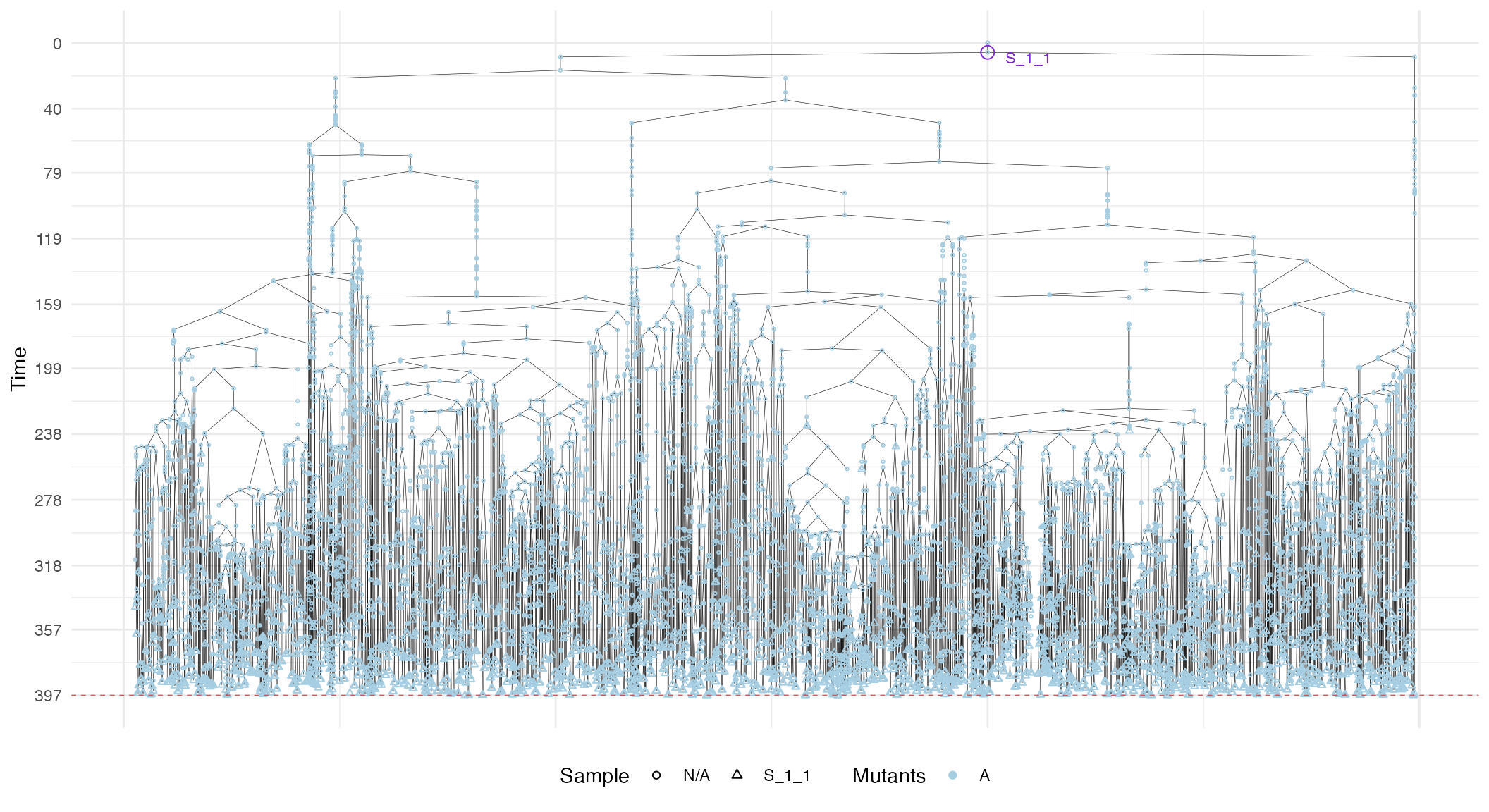

# Extract the subforest linked to sample
S_1_1_forest <- forest$get_subforest_for("S_1_1")
plot_forest(S_1_1_forest)
In general, these plots can be annotated with extra information, such as the sampling times and the MRCAs of each sample in the forest.
# Full plot
plot_forest(forest) %>%
annotate_forest(forest)
# S_1_1 plot
plot_forest(S_1_1_forest) %>%
annotate_forest(S_1_1_forest)
Randomised multi-region samples
# set the seed of the random number generator
set.seed(0)
sim <- TissueSimulation("Randomised")
sim$add_mutant(name = "A", growth_rates = 0.1, death_rates = 0.01)
sim$place_cell("A", 500, 500)
sim$run_up_to_size("A", 60000)
#> [████████████████████████----------------] 58% [00m:00s] Cells: 35110 [█████████████████████████████████████---] 91% [00m:00s] Cells: 55082 [████████████████████████████████████████] 100% [00m:01s] Saving snapshotWe include a new mutant and let it grow. This new mutant has much higher growth rates than its ancestor.
# Add a new mutant
sim$add_mutant(name = "B", growth_rates = 1, death_rates = 0.01)
sim$mutate_progeny(sim$choose_cell_in("A"), "B")
sim$run_up_to_size("B", 10000)
#> [████████████████████████████████████████] 100% [00m:00s] Saving snapshot
current <- plot_tissue(sim)
current
Since the mutant start has been randomised by TissueSimulation$choose_cell_in(),
we have no exact idea of where to sample to obtain, for example, 100 of its cells.We can visually inspect the
simulation, but it is slow.
ProCESS provides a TissueSimulation$search_sample()
function to sample bounding boxes that contain a desired number of
cells. The function takes in input:
- a bounding box size;
- the number n of cells to sample for a species of interest.
TissueSimulation$search_sample()
will attempt a fixed number of times to sample the box, starting from
positions occupied by the species of interest. If a box that contains at
least n cells is not found within a
number of attempts, then the one with the largest number of samples is
returned.
This allows for programming sampling without having a clear idea of the tissue conformation.
# A bounding box 50x50 with at least 100 cells of species B
n_w <- n_h <- 50
ncells <- 0.8 * n_w * n_h
# Sampling ncells with random box sampling of boxes of size n_w x n_h
bbox <- sim$search_sample(c("B" = ncells), n_w, n_h)

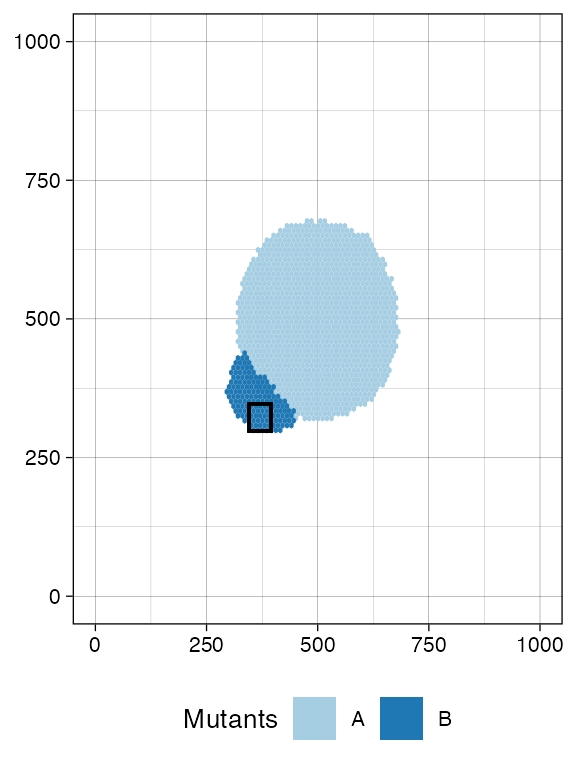

# plot the bounding box
current +
geom_rect(xmin = bbox$lower_corner[1], xmax = bbox$upper_corner[1],
ymin = bbox$lower_corner[2], ymax = bbox$upper_corner[2],
fill = NA, color = "black")
# sample the tissue
sim$sample_cells("S_2_1", bbox$lower_corner, bbox$upper_corner)Something similar to species A.
bbox <- sim$search_sample(c("A" = ncells), n_w, n_h)
# plot the bounding box
current +
geom_rect(xmin = bbox$lower_corner[1], xmax = bbox$upper_corner[1],
ymin = bbox$lower_corner[2], ymax = bbox$upper_corner[2],
fill = NA, color = "black")
# sample the tissue
sim$sample_cells("S_2_2", bbox$lower_corner, bbox$upper_corner)The two samples have been extracted.

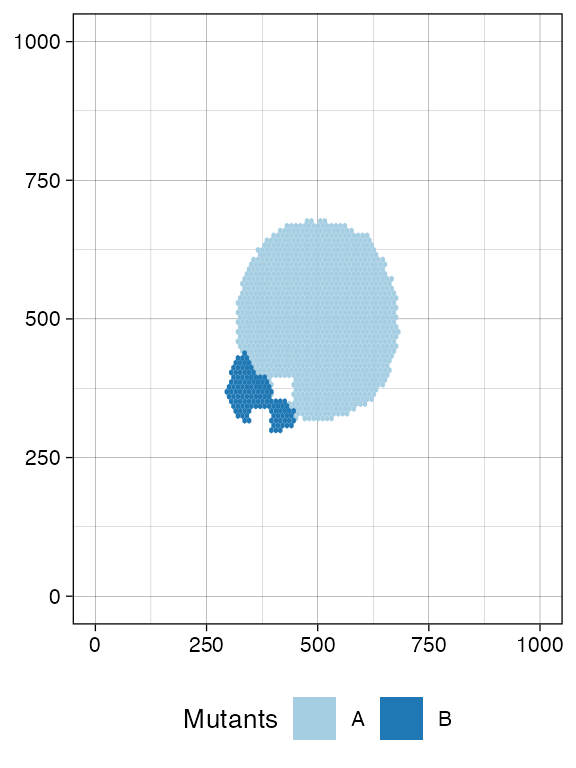

plot_tissue(sim)

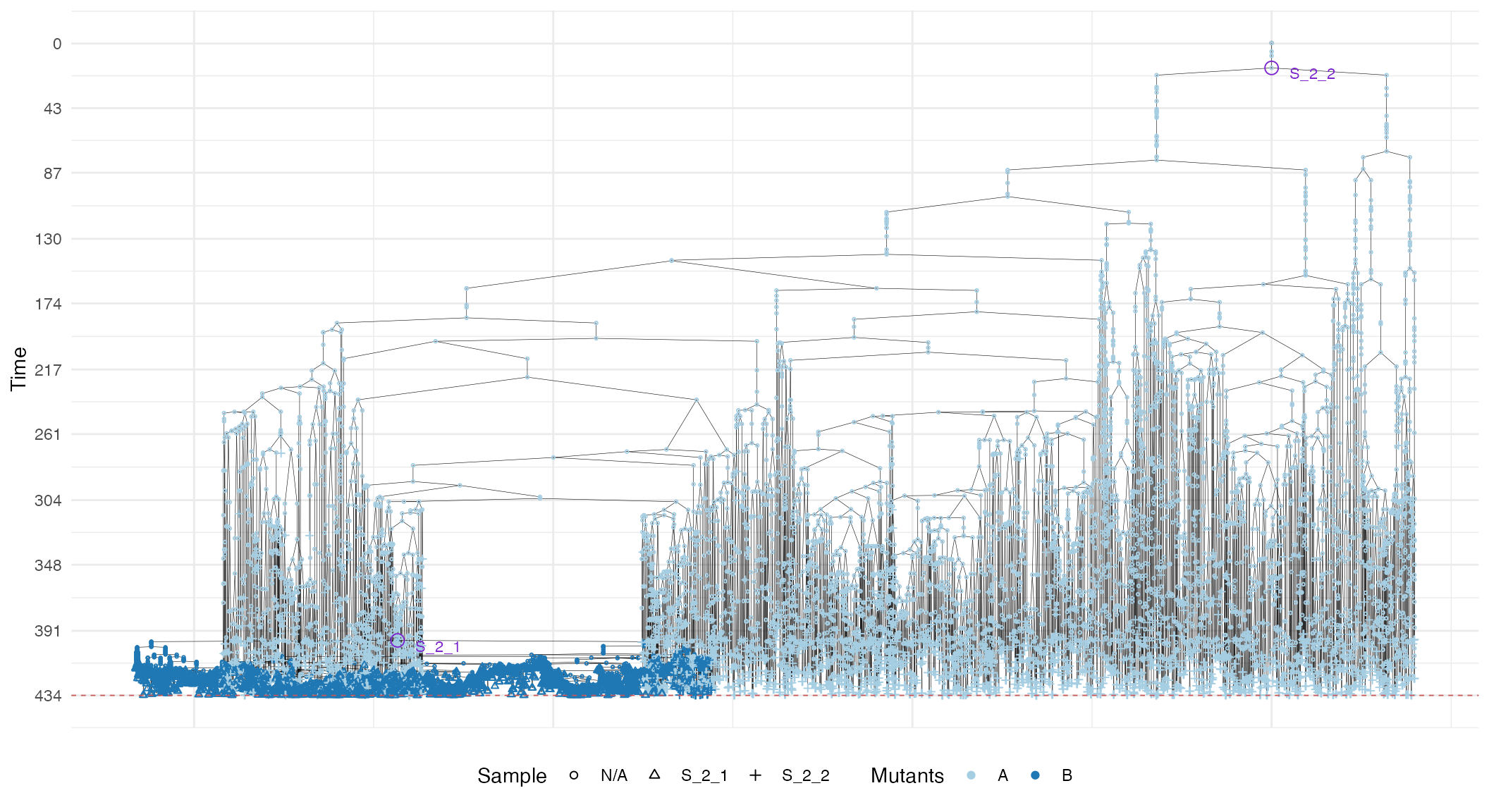

We can build the sample forest.
forest <- sim$get_sample_forest()
plot_forest(forest) %>%
annotate_forest(forest)
Randomised cell sampling (Liquid biopsy)
ProCESS supports randomised cell sampling over the full tissue or a rectangle thereof.
# collect up to 2500 tumour cells randomly selected over the whole tissue
sim$sample_cells("S_2_3", num_of_cells = 2500)
bbox <- sim$search_sample(c("A" = ncells), n_w, n_h)
# collect up to 200 tumour cells randomly selected in the provided
# bounding box
sim$sample_cells("S_2_4", bbox$lower_corner, bbox$upper_corner, 200)

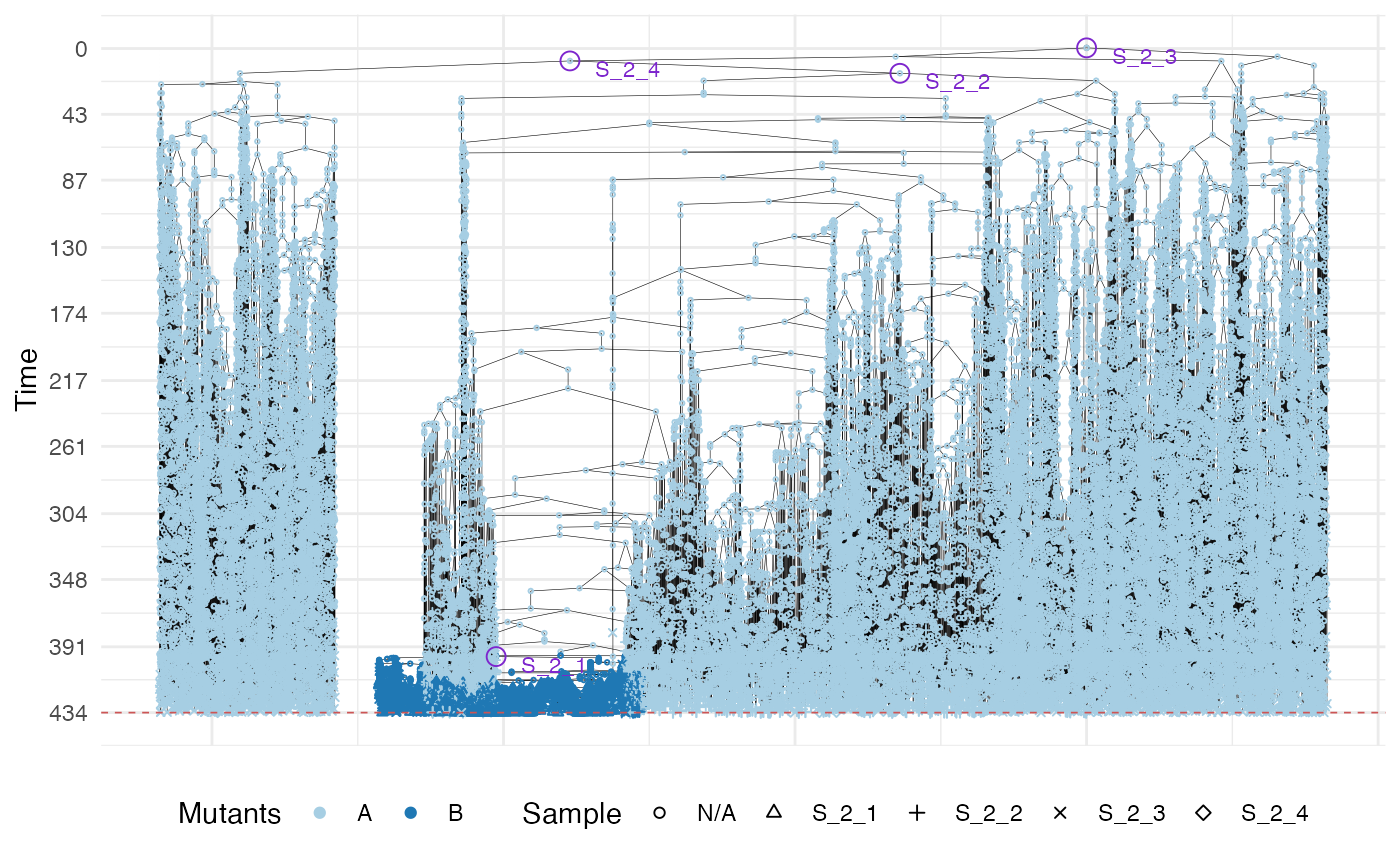

forest <- sim$get_sample_forest()
plot_forest(forest) %>%
annotate_forest(forest)
Two populations with an epi-state
We are now ready to simulate a model with epigenetic switches and sub-clonal expansions.
# set the seed of the random number generator
set.seed(0)
sim <- TissueSimulation("Two Populations")
sim$death_activation_level <- 20
# First mutant
sim$add_mutant(name = "A",
epigenetic_rates = c("+-" = 0.01, "-+" = 0.01),
growth_rates = c("+" = 0.1, "-" = 0.08),
death_rates = c("+" = 0.1, "-" = 0.01))
sim$place_cell("A+", 500, 500)
sim$run_up_to_size("A+", 1000)
#> [███████████████████████████████████-----] 87% [00m:00s] Cells: 29232 [████████████████████████████████████████] 100% [00m:00s] Saving snapshot

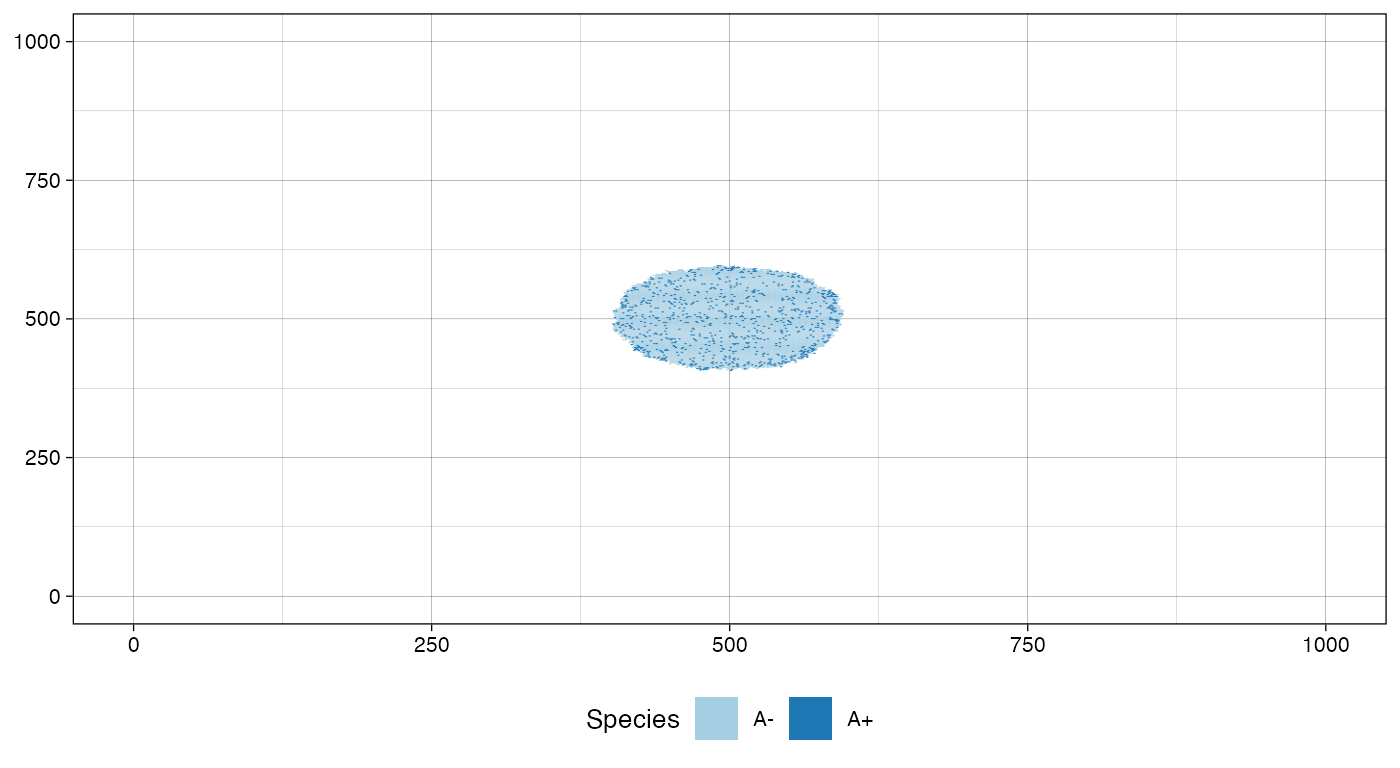

plot_tissue(sim, num_of_bins = 500)
We sample before introducing a new mutant.
bbox_width <- 10
sim$sample_cells("S_1_1",
bottom_left = c(480, 480),
top_right = c(480 + bbox_width, 480 + bbox_width))
sim$sample_cells("S_1_2",
bottom_left = c(500, 500),
top_right = c(500 + bbox_width, 500 + bbox_width))
plot_tissue(sim, num_of_bins = 500)
# Let it grow a bit more
sim$run_up_to_time(sim$get_clock() + 15)
#> [████████████████████████████████████████] 100% [00m:00s] Saving snapshot

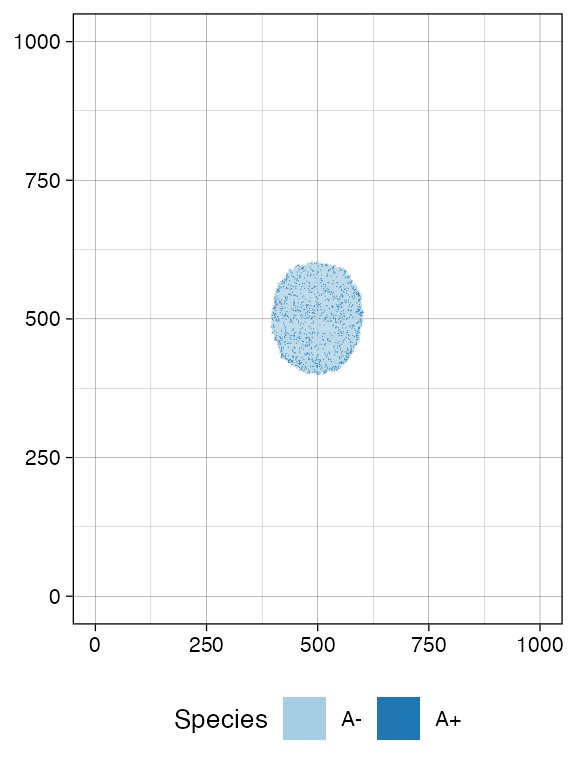

plot_tissue(sim, num_of_bins = 500)
Add a new submutant.
cell <- sim$choose_cell_in("A")
sim$add_mutant(name = "B",
epigenetic_rates = c("+-" = 0.05, "-+" = 0.1),
growth_rates = c("+" = 0.8, "-" = 0.3),
death_rates = c("+" = 0.05, "-" = 0.05))
sim$mutate_progeny(cell, "B")
# let it grow more time units
sim$run_up_to_size("B+", 7000)
#> [████████████████████████████████████████] 100% [00m:00s] Saving snapshot

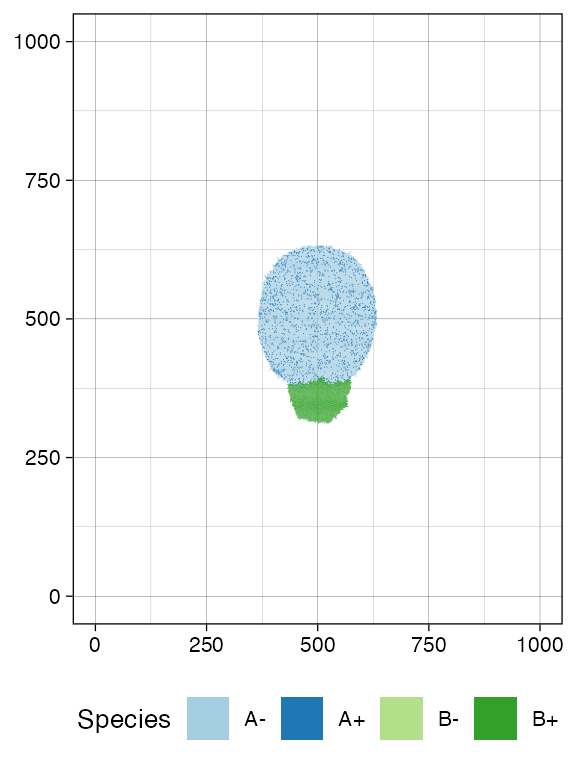

plot_tissue(sim, num_of_bins = 500)
Sample again and plot the tissue
n_w <- n_h <- 25
ncells <- 0.9 * n_w * n_h
bbox <- sim$search_sample(c("A" = ncells), n_w, n_h)
sim$sample_cells("S_2_1", bbox$lower_corner, bbox$upper_corner)
bbox <- sim$search_sample(c("B" = ncells), n_w, n_h)
sim$sample_cells("S_2_2", bbox$lower_corner, bbox$upper_corner)

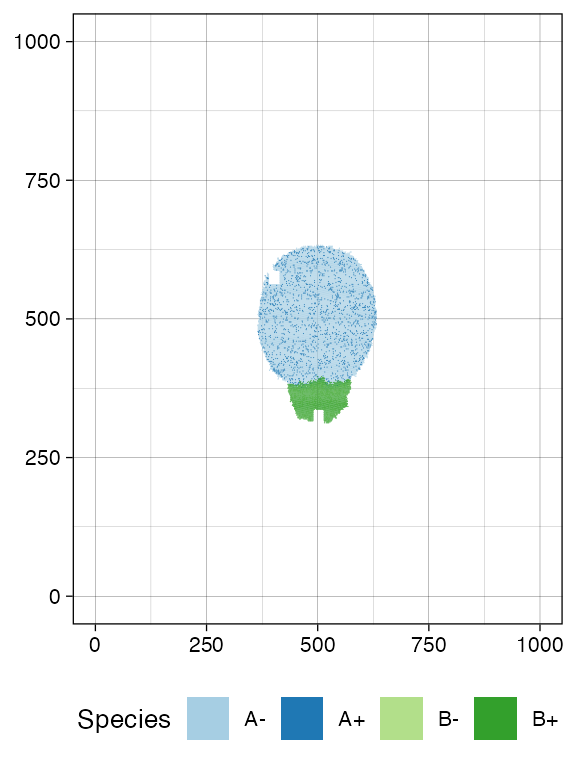

plot_tissue(sim, num_of_bins = 500)

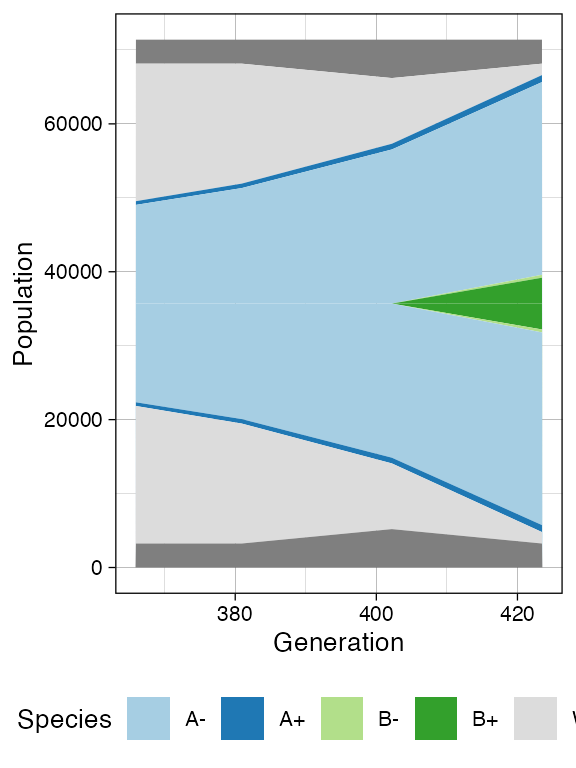

plot_muller(sim)

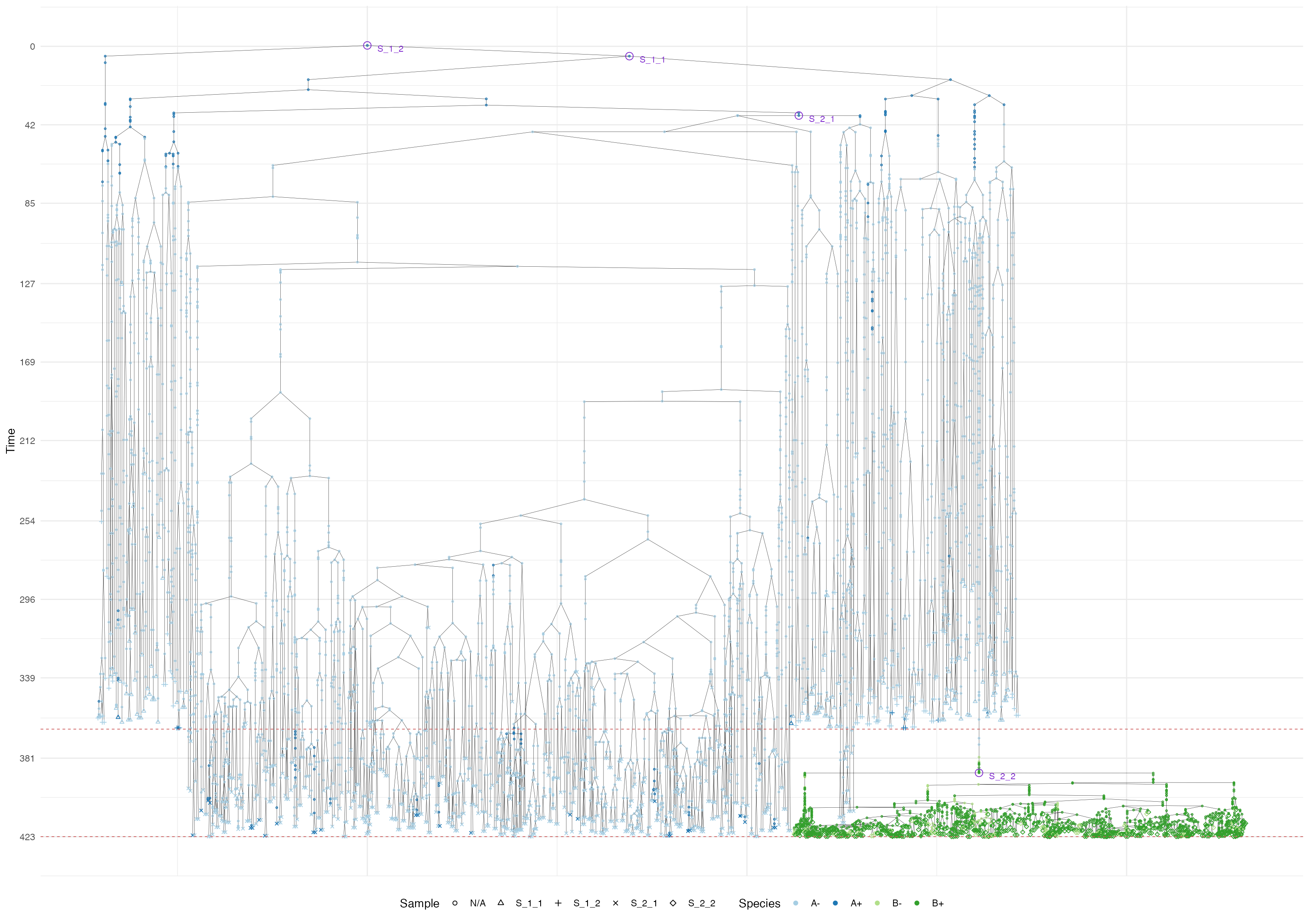

Now we show the sample forest, which starts being rather complicated
forest <- sim$get_sample_forest()
plot_forest(forest) %>%
annotate_forest(forest)
Storing Samples Forests
A sample forest can be saved in a file by using the method SampleForest$save().
# check the file existence. It should not exist.
file.exists("sample_forest.sff")
#> [1] FALSE
# save the sample forest in the file "sample_forest.sff"
forest$save("sample_forest.sff")
# check the file existence. It now exists.
file.exists("sample_forest.sff")
#> [1] TRUEThe saved sample forest can successively be loaded by using the
function load_sample_forest().
# load the sample forest from "sample_forest.sff" and store it in `forest2`
forest2 <- load_sample_forest("sample_forest.sff")
# let us now compare the sample forests stored in `forest` and `forest2`;
# they should be the same.
forest
#> SampleForest
#> # of trees: 1
#> # of nodes: 6065
#> # of leaves: 1476
#> samples: {"S_1_1", "S_1_2", "S_2_1", "S_2_2"}
forest2
#> SampleForest
#> # of trees: 1
#> # of nodes: 6065
#> # of leaves: 1476
#> samples: {"S_1_1", "S_1_2", "S_2_1", "S_2_2"}
